DC17V-DC33V Addressable Sounder Strobe Wall Mounted Customized

  • 1
  • 2

Brand Name : XHA

Model Number : CA2011

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000PCS/Month

Delivery Time : 3 Working days

Packaging Details : 100pcs/carton

Types of Smoke Detectors : Addressable Sounder Strobe

Working Voltage : DC17V～DC33V | Customized Request

Wire Type : Non-Polarity 2-Wired

Installation : Wall Mounted

Connected : loop bus

Customized : Acceptable

Contact Now

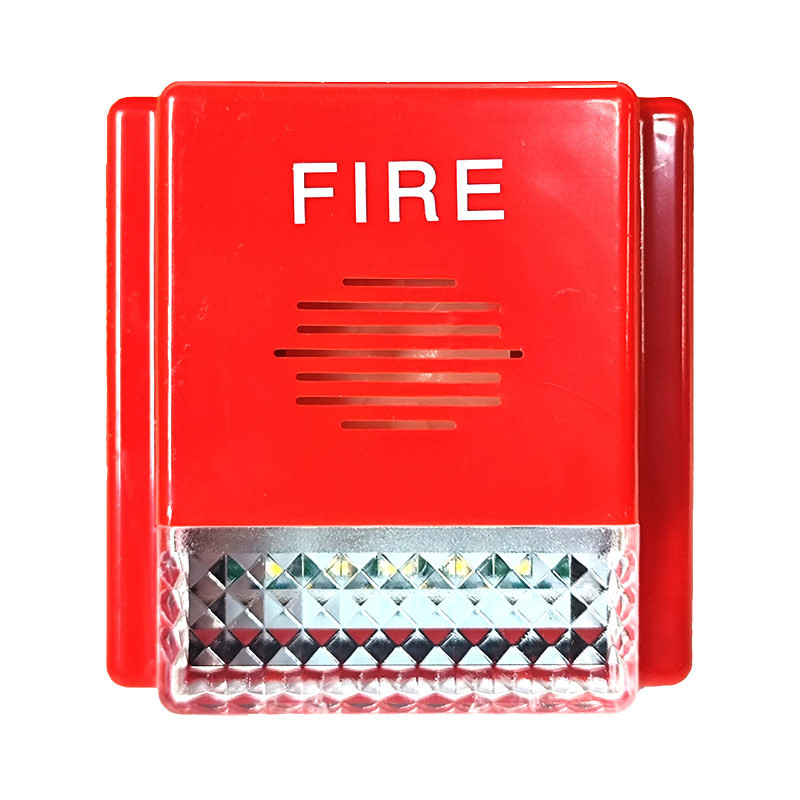

Addressable Sounder Strobe For Intelligent Fire Security Alarm System

DC17V-DC33V Addressable Sounder Strobe Wall Mounted Customized

Introduction

CA2011 addressable sounder strobe can give audile and visual notification signal when activated by XHA intelligent fire alarm control panel, to draw attention or evacuate in case of emergency.


Parameters
Product name Sounder Strobe Type Addressable
Loop Bus wired 2-wire Non-polarized Monitor Current ≤300uA
Alarm Currrent ≤40mA Dimension Φ85*46 mm
Work voltage DC17V～DC33V Operating Environment Temperature -10°C~+50°C
Humidity ≤95%.
Weight Weight:102g(with base) Certification CE



Main Functions


•Electrically addressed, can be modified by programmer.
•No need external 24V power line.
•Sound level over 85dB/3m

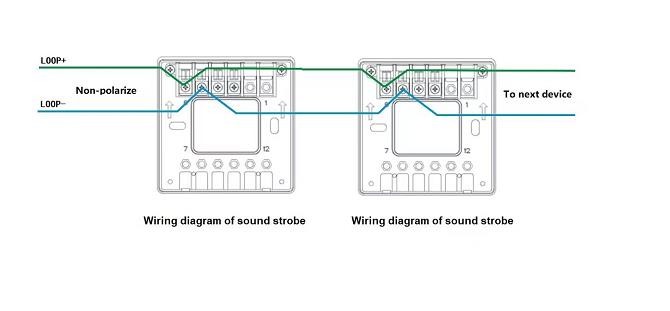

Connection between Sounder Strobe

DC17V-DC33V Addressable Sounder Strobe Wall Mounted Customized

Connection Diagram of Fire Alarm System

DC17V-DC33V Addressable Sounder Strobe Wall Mounted Customized



Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector


Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
