2-Wire Addressable Heat Detectors For Fire Protection And Fire Safety
Introduction

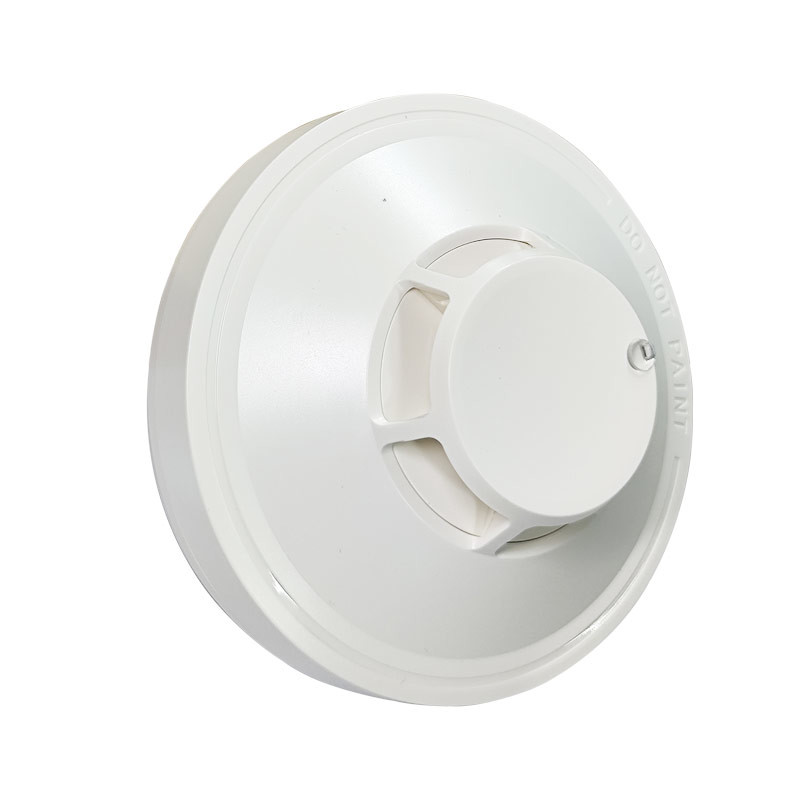

CA9005 intelligent heat detectors adopt the latest digital loop protocol, compatible with XHA intelligent fire alarm control panels. With digital communication, the detectors can raise fast alarm.The heat detector can provide fire alarm by analyzing the temperature status by semiconductor heat sensor. It’s installed onto the common detector base DZ9000.
Addressable heat detectors are commonly used in environments where smoke-based detection may not be suitable, such as in areas with high levels of dust, steam, or other airborne particulates. They are often found in industrial, commercial, and institutional settings where early fire detection and emergency response are crucial.
The key advantages of using addressable heat detectors in a fire alarm system include:
Precise Alarm Location: The unique address of each heat detector enables the control panel to identify the exact location of an activated alarm.
Enhanced Reliability: Addressable heat detectors offer self-diagnostics and remote monitoring capabilities, improving the overall system reliability.
Customizable Settings: Adjustable temperature thresholds help optimize the detectors' performance based on the specific environment.
Integrated System Functionality: The integration with the addressable fire alarm control panel enables coordinated emergency responses and comprehensive system management.
Parameters | Product name | Heat Detector | Type | Addressable |
| Loop Bus wired | 2-wire Non-polarized | Monitor Current | ≤350uA |
| Alarm Currrent | ≤2mA | Dimension | Φ85*42 mm |
| Work voltage | DC17V～DC33V | Operating Environment | Temperature -10°C~+50°C
Humidity ≤95%. |
| Weight | Weight:93g(with base) | Certification | CE |
Main Functions
•Electrically addressed, can be modified by programmer.
•Strong environmental adaptability due to drift compensation.
•Self-diagnostic.
•Communication:2 wires,Non-polarized.
Connection between Detector
Connection Diagram of Fire Alarm System
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
